KOSM

[offer_percentage]

All Taxes Included

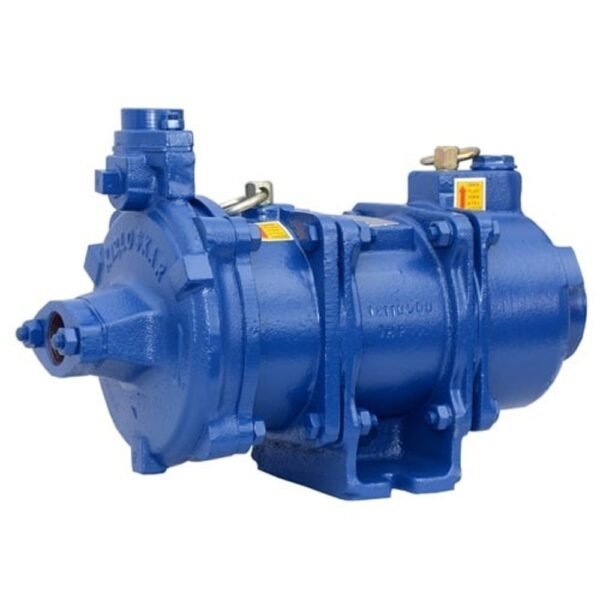

Three Phase Open - well Pumps

Technical Specifications

Head Range Up to 38 Metres
Discharge Range Up to 11 LPS
Power Rating 0.75 to 1.5 kW (1.0 to 2 HP)
Voltage Range 300 to 440 Volts (Three Phase)
Insulation PP
Protection IP68

Impeller Cast Iron/ Noryl
Delivery Casing Cast Iron
Motor Body Cast Iron
Pump Shaft Stainless Steel

  • Domestic and community water supply
  • Gardening and small farm irrigation
  • Water fountains
  • Construction site
  • Water supply to over head tanks

Wide Voltage Design: The motor is designed to withstand wide voltage variation from 300 to 440 volts and reduces motor burning in case of low/high voltage

Lightweight and Compact Design: Constructed with special grade engineering materials, compact designs for ease of handling and installation.

Dynamically Balanced Rotating Parts: Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained.

Replaceable Wearing Parts: All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.

Easy Maintainable Designs: Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians.

CED – Cathodic Electro Deposition: CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

High Efficiency and Energy Saving Design: Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

Advanced Water Cooled Motors Designs: The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years.
