STAR GALAXY

[offer_percentage]

All Taxes Included

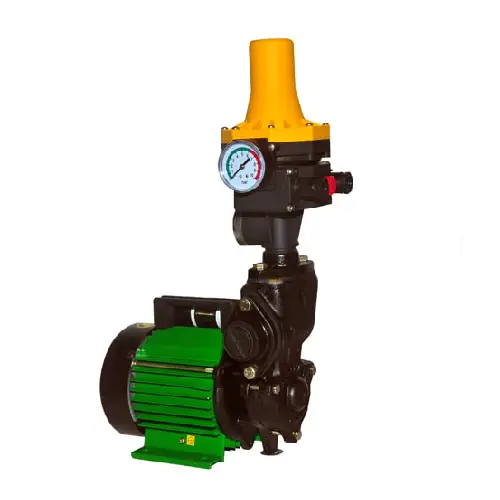

Pressure Boosting System

Technical Specifications

Head Range  Up to 28 Meters
Discharge Range  Up to 2700 LPH
Power Rating  0.37 kW (0.5 HP)
Pressure Range  Up to 2.4 kg/cm2
Voltage range  180 to 260 Volts (Single phase)
Insulation  B Class
Protection  IP 44

  • Bathroom Showers
  • Consistent pressure at multi outlets
  • Washing machine, Gas Geyser
  • Pressurised washing of vehicles
  • Kitchenware washing

High Suction Lift: The pump has suction lift capacity of up to 7.5 metres with high head, facilitating pumping of water at high volumes for a variety of applications..

High Quality Aluminium Motor Body: Special grade aluminium motor body ensures high resistance to corrosion, better heat dissipation and lowers the pump’s overall weight for great portability.

TOP – Thermal Overload Protector: The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current.

Handle to Enhance Grip and Portability: A handle attached to the pump allows user to carry the pump anywhere, adding to its portability and convenience of use.

Easy Maintainable Designs: Easy maintainable design and better interchangeability of components ensures that the pump can be serviced even at remote locations by semi-skilled technicians.

Shielded Ball Bearing: The low noise pumps are fitted with shielded ball bearing; so, no external lubrication is required throughout the life cycle.

High Efficiency and Energy Saving Design: Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost savings.

Dynamically Balanced Rotating Parts: Minimum vibration protect components from damage during the operation, thus ensuring consistent performance as concentricity is maintained.
