Electric Motors are the most important type of electric load in every industry. The motor driven systems account for about 70% of the energy consumed by the industry. There is a large potential for cost effective solution in the use of energy efficient motor systems by about 20% to 30%.
Energy efficient motors form a major component in contributing to the energy saving.

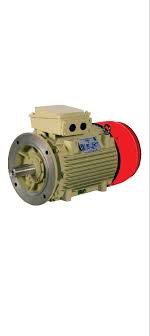

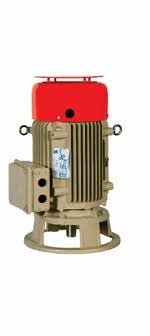

Ravi series is the new range of Low voltage Cage Motors from Kirloskar Electric in compliance with IS/IEC 60034-1. These motors are compact, reliable and robust in nature and embody the unrivalled experience of Kirloskar Electric in the manufacture of Electric motors for diverse applications.
Performance | IS/IEC 60034-1 |
Output and Dimension | IS 1231 and IS 2223 |
Degree of Protection | IS/IEC 60034-5 |
Cooling | IS 6362 |
Noise Level | IS 12065 |
Vibration Level | IS 12075 |
Efficiency | IS 12615-2011 |
Frame & Output (KW) | 0.37kW to 200kW |
Input Voltage (V) | 415V ± 10% |
Frequency (HZ) | 50 HZ ± 5% |
Combined Variations | 10% |
Ambient Temp | 50°C |
Duty | S1 |
Insulation | Class F |
Temperature Rise | Class B |
Protection | IP 55 |
Cooling | IC 411 |
Motors are ideal for various industrial applications like:
Note: All performance figures are at rated supply conditions and are subject to tolerance as per applicable standards.
Product upgradation is a continuous process. Hence, data in this website is subject to change without prior notice. For the latest information, please get in touch with our Sales Offices.
