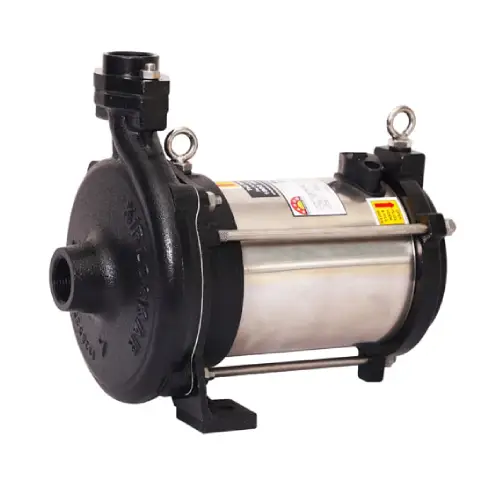

Single Phase Open-Well Submersible Pumps

Technical Specifications

Head Range  Up to 42 Metres
Discharge Range  Up to 9.7 LPS
Power Rating  0.37 to 1.5 kW (0.5 to 2 HP)
Voltage Range  160 to 260 Volts (Single Phase)
Insulation PP
Protection  IP68

Impeller  Cast Iron/ Noryl
Delivery Casing  Cast Iron
Motor Body  Stainless Steel
Shaft  Stainless Steel

  • Domestic and community water supply
  • Gardening and small farm irrigation
  • Water fountains
  • Construction site
  • Water supply to over head tanks

Wide Voltage Design: The motor is designed to withstand wide voltage variation from 160 to 260 volts and reduces motor burning in case of low / high voltage.

Lightweight and Compact Design: Constructed with special-grade engineering materials, compact designs for ease of handling and installation.

Dynamically Balanced Rotating Parts: Minimum vibration protects components from damage during the operation, thus ensuring consistent performance over a longer time period as concentricity is maintained.

Replaceable Wearing Parts: All wearing parts within the pumps are easily accessible and replaceable, which facilitates ease of maintenance, thereby extending the life of the pump.

Easy Maintainable Designs: Easy maintainable design and better interchangeability of components so that pumps can be serviced even at remote locations by semi-skilled technicians.

CED – Cathodic Electro Deposition: CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection than conventional painting, resulting in a longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED-coated.

High Efficiency and Energy-Saving Design: Innovative design manufactured at a state-of-the-art plant delivers optimum efficiency at lower energy consumption, resulting in significant cost savings.

Advanced Water-Cooled Motor Designs: The motor is filled with potable water, which protects it from overheating and facilitates smoother and trouble-free operation for years.
